Synthesizing Zinc Acetate looks like a straightforward chemical reaction on paper. You mix a base and an acid. Then you crystallize the final product. However, achieving the precise hydration state, particle size, and purity demands strict process control. Commercial applications like pharmaceutical precursors, metal-organic frameworks (MOFs), or nuclear coolants require exact specifications. You cannot rely on basic laboratory methods for industrial-scale production.
Selecting the wrong synthesis route or drying parameter ruins entire batches. You risk heavy metal contamination. You might cause premature dehydration. You could also face severe yield drop-offs. These failures disrupt supply chains and compromise downstream product integrity. Manufacturers must treat crystallization and thermal management as highly specialized operations.
We designed this guide to objectively evaluate the most viable lab-scale and industrial synthesis methods. You will learn how to compare yields, purification capabilities, and scalability. This knowledge helps procurement and engineering teams lock down consistent batch quality and avoid critical processing errors.
The standard industrial route utilizes zinc oxide (ZnO) and aqueous acetic acid, but precise mass ratios (typically 1 : 1.6–2.0 : 1.8–2.2) are critical for complete dissolution.
Temperature control is the primary operational bottleneck; drying above 40°C risks premature conversion to Zinc Acetate Anhydrous or partial decomposition.
Advanced purification techniques—such as closed-loop zinc metal displacement—can strip heavy metals (Pb, Cd, Cu) to meet >99.8% purity standards without generating secondary waste.
Caking during high-concentration liquid synthesis can be mitigated by introducing acetic anhydride to the solvent matrix.
You must frame your target outcome before selecting a synthesis method. The baseline chemical interaction relies on a classic neutralization equation: ZnO + 2CH3COOH → (CH3COO)2Zn + H2O. Zinc oxide powder acts as the base. Aqueous acetic acid serves as both the reactant and the primary solvent. This reaction generates heat naturally. Operators must manage this thermal output carefully inside jacketed reactor vessels. The way you handle the subsequent cooling and drying phases determines the final molecular structure.
Engineers differentiate the target states based on their hydration levels and crystal geometry. You must choose the correct form for your specific downstream application.

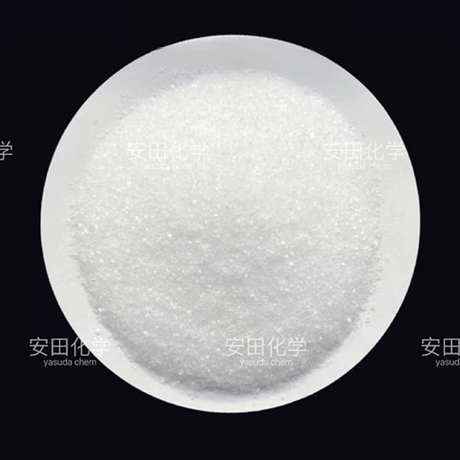

Dihydrate (Octahedral structure): This represents the standard commercial form. It requires exact cooling and crystallization parameters. You will find it commonly used in dietary supplements, cold lozenges, and standard chemical manufacturing.
Zinc Acetate Anhydrous (Tetrahedral structure): You achieve this state via controlled vacuum heating. It remains highly sensitive to ambient moisture. Industrial chemists primarily use it in specific catalytic processes, such as vinyl acetate production.
Basic Zinc Acetate (Zn4O(CH3CO2)6): This derivative forms during high-temperature vacuum dehydration. It features a unique cluster structure. It serves as a critical precursor for advanced Metal-Organic Frameworks (MOFs). You will also see it deployed as a catalyst for PVC foaming agents.
Target State | Molecular Structure | Synthesis Condition | Primary Commercial Application |
|---|---|---|---|
Dihydrate | Octahedral | Aqueous crystallization (0–5°C) | Pharma precursors, dietary supplements |
Anhydrous | Tetrahedral | Vacuum heating, moisture-free | Industrial catalysis, chemical synthesis |
Basic Zinc Acetate | Cluster complex | High-temp vacuum dehydration | MOFs, PVC foaming catalysts |
Industrial facilities favor the liquid-phase synthesis route. It scales exceptionally well. It utilizes common glass-lined chemical reactors. However, execution requires strict adherence to mass ratios and thermal timing. You evaluate this method when you need high-volume output with reliable consistency.
You must deploy proven ZnO-to-acetic acid mass models. These ratios prevent incomplete dissolution. The industry standard utilizes a specific mass ratio window. You use 1 part zinc oxide. You add 1.6 to 2.0 parts water. You finish with 1.8 to 2.2 parts acetic acid. If you drop the acid ratio, unreacted zinc oxide powder contaminates the final slurry. If you increase the water ratio too much, evaporation takes significantly longer. Some operations utilize alternative methanol and water solvent systems. They process the batch at 50°C. This specialized approach can yield reliable 84% conversion rates.
The crystallization process dictates the physical quality of your batch. You must follow a precise step-by-step sequence:
Evaporation to supersaturation: You apply heat to boil off excess solvent. This concentrates the liquid. It creates the critical window for initiating crystal growth.
Thermal stabilization: You halt the heat input once the solution reaches the saturation threshold. You prepare the cooling jackets.
Controlled cooling: You drop the system temperatures down to 0–5°C. You must lower the heat gradually to encourage proper nucleation.
Extended holding phase: You maintain this near-freezing temperature for 15 to 20 hours. This allows the octahedral crystals to form completely.
Process justification explains why we use these exact parameters. Rushing the crystallization phase directly harms your yield. If you pull the batch under 15 hours, yields plummet. They typically drop below 70%. Proper crystal lattice formation takes time. Short-circuiting the cold stabilization phase leaves valuable product dissolved in the mother liquor.
Pharmaceutical and nuclear applications demand extreme purity. You must often meet compliance standards exceeding 99.8%. Heavy metals naturally occur alongside zinc ores. You must aggressively strip them out during liquid-phase synthesis. Traditional additive methods often fall short.
The "zinc displacement" method offers a highly effective industrial optimization. You soak metallic zinc plates or strips directly in the solution. The solution must remain at 90–100°C. It must be saturated basic zinc acetate. You leave the metal submerged for 20 to 40 minutes. This triggers a powerful reduction reaction. The metallic zinc aggressively strips out lead, cadmium, and copper impurities. These heavy metals precipitate as solid powders. You easily filter them out via solid-liquid centrifugation. This galvanic technique outperforms traditional zinc sulfate additives. Zinc sulfate only addresses lead contamination. It leaves cadmium and copper entirely untouched.
You can also deploy step-down pH control for yield amplification. The primary displacement reaction occurs at an initial pH of 5.0 to 5.5. After you remove the heavy metal impurities, you adjust the chemistry. You add precise volumes of glacial acetic acid. This shifts the pH down to a 3.5 to 4.5 range. This secondary acidification forces remaining basic ions to convert into the target dihydrate form. It maximizes your final output without requiring additional zinc raw material.
Alternative precursor routes exist for extreme purity requirements. Research laboratories sometimes utilize the diethylzinc combustion method. This highly specialized technique drops metal impurities below 5 × 10^-4 wt%. It produces an exceptionally clean precursor. However, the process remains incredibly expensive. It requires advanced closed-system infrastructure to handle highly reactive diethylzinc safely.
Implementation realities often challenge theoretical chemistry. You will face physical processing risks during scale-up. Dehydration, powder caking, and calcination adhesion cause the most frequent production delays.
Drying temperature red lines require strict enforcement. After you centrifuge the wet crystals, you must dry them. You must strictly cap drying temperatures at 30–40°C. Higher heat risks severe structural degradation. Exceeding 40°C strips away essential crystal water. This leads to the unintended formation of Zinc Acetate Anhydrous. It can also cause partial thermal decomposition. You lose batch consistency when you violate this temperature boundary.
High-concentration liquid synthesis frequently triggers a severe "caking" problem. The chemical forms hard agglomerations inside the reactor. It becomes impossible to stir or filter. Advanced laboratory optimizations solve this physical challenge. You introduce a specific mixture of acetic acid and acetic anhydride to the solvent matrix. The anhydride consumes excess moisture rapidly. It prevents the material from clumping together. The slurry remains highly flowable and granular. This modification reduces a multi-hour recovery process to under an hour. It also helps push overall yields up to 97%.
Downstream application engineers often complain about calcination adhesion. When they bake the precursor at 900°C for nanotechnology applications, it sticks. The powder fuses directly to the ceramic crucibles. This destroys expensive equipment. You mitigate this risk by ensuring ultra-high precursor purity. Trace heavy metals lower the sintering temperature. They act as unwanted fluxes. Removing these impurities prevents premature melting. Implementing strict atmospheric controls during the bake cycle also prevents equipment damage.
Selecting the right synthesis approach depends entirely on your commercial goals. You must evaluate your target purity, budget, and downstream application. Use this shortlisting logic to guide your procurement and engineering teams.
For High-Volume, Cost-Sensitive Manufacturing: Select the standard aqueous zinc oxide and acetic acid route. You must implement a closed-loop mother liquor recovery system. This recycles unreacted acids and prevents material waste. It keeps operational overhead low.
For E-Number, Pharma, or Nuclear Compliance: You must utilize the zinc-displacement purification method. Combine this with strict 30°C low-heat drying. This guarantees you strip out toxic heavy metals. It ensures you preserve the exact dihydrate crystal structure required by regulators.
For Advanced Material Synthesis (MOFs/Nanoparticles): Choose glacial acetic acid digestion. Alternatively, deploy vacuum-assisted dehydration. These aggressive methods secure the high-purity basic or anhydrous variants you need for complex catalyst development.
Commercial Goal | Recommended Route | Purification Strategy | Key Risk to Monitor |
|---|---|---|---|
Cost-Sensitive Volume | Standard Aqueous Liquid-Phase | Mother liquor recycling | Low yield from short cooling |
Pharma / Nuclear Purity | Aqueous + Displacement | Zinc metal plate reduction | Dehydration during drying |
Advanced MOF Synthesis | Glacial Acetic Digestion | Vacuum dehydration | Equipment caking |
Knowing how to make this industrial compound involves much more than a basic chemical equation. Success relies entirely on aggressive thermal management. You must utilize precise pH staging to maximize yields. You need advanced impurity extraction techniques to meet modern compliance standards. Small deviations in cooling times or drying temperatures ruin the molecular structure.
Procurement and engineering teams must take proactive steps. We strongly advise you to audit your current or prospective suppliers. You need to verify their heavy metal extraction methods. You must confirm their crystallization holding timelines exceed 15 hours. This diligence ensures you receive consistent, high-grade batch quality.
Do not leave your supply chain to chance. Contact a chemical synthesis consultant today to review your material specifications. We recommend requesting a sample batch for independent purity and hydration verification before committing to large-volume orders.
A: You must maintain a strict 30–40°C boundary during the drying phase. Exceeding 40°C causes the crystals to lose their bound water molecules. Keeping the temperature low ensures you maintain the stable dihydrate form without degrading the batch into partial anhydrous states.
A: You achieve this conversion through controlled vacuum heating. You place the dihydrate in a moisture-free vacuum chamber and apply heat to strip the crystal water. You must monitor the parameters closely. Excessive heat risks further degrading the material into basic zinc acetate.
A: You can introduce a specialized solvent mixture of acetic acid and acetic anhydride. The anhydride actively consumes excess moisture in high-concentration reactions. This prevents agglomeration and maintains a highly flowable, easily filterable granular slurry.
A: Several common culprits cause low yields. You might be cutting the crystallization time shorter than 15 hours. You could be using incorrect zinc oxide to acid mass ratios, leaving unreacted material. You might also lack a secondary pH-lowering step to force final ion conversion.
